DIAPHRAGM WALL

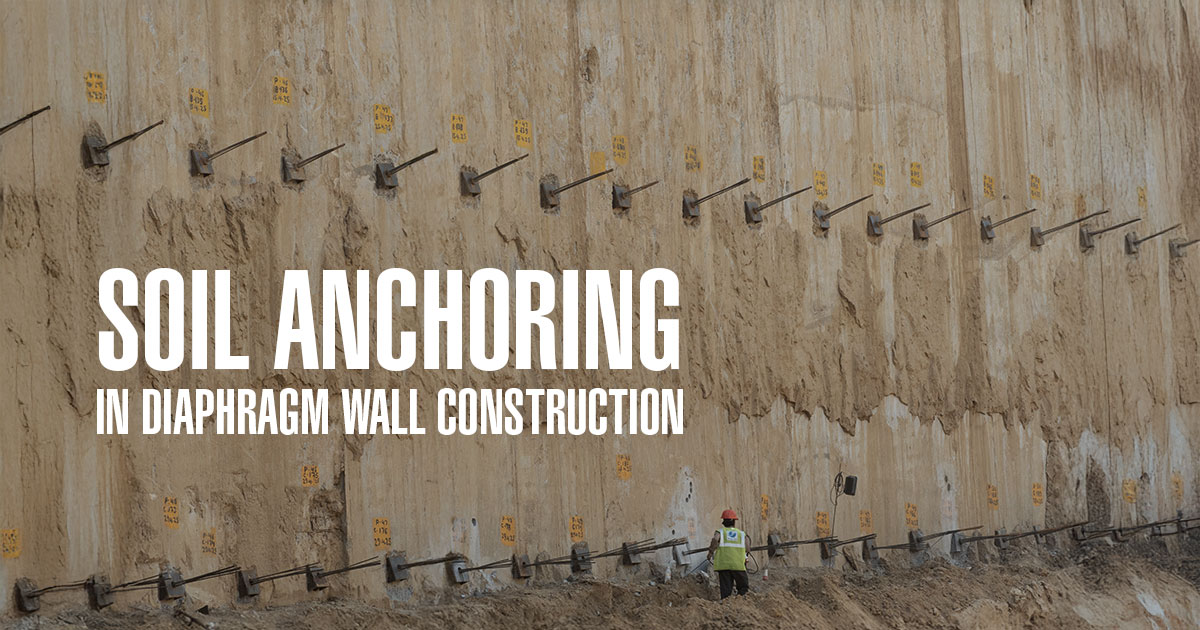

Soil Anchoring Process in Diaphragm Wall Construction

In the world of deep excavation and urban infrastructure, diaphragm wall construction (Dwall) stands out for its strength and stability. However, one crucial element that enhances the performance and safety of diaphragm walls – especially in high-retaining or waterlogged areas – is soil anchoring.

At Wagad Buildcon Pvt. Ltd., we integrate soil anchoring as a critical part of our Dwall projects to resist lateral earth pressure, reduce deformation, and improve structural reliability.

Here’s a detailed look at how the soil anchoring process works in Dwall construction.


🔩 What is Soil Anchoring in Dwall Construction?

Soil anchoring involves the installation of prestressed steel anchors into the ground through the diaphragm wall. These anchors are grouted and tensioned to transfer load from the wall to the stable strata, ensuring minimal displacement and maximum stability during and after excavation.

🏗️ Key Stages of Soil Anchoring Process

1. Anchor Preparation

Before drilling begins, the required anchor layout, angle, depth, and capacity are finalized based on structural design. High-strength steel tendons or bars are prepared, often coated with anti-corrosive grease or sleeves to ensure long-term durability.

Wagad Insight: Every site has unique geotechnical demands — and we tailor our anchor specifications accordingly.


2. Drilling & Anchor Insertion

Drilling is done at a specific inclination (usually 10–30° from horizontal) using rotary or percussion methods. Once the hole reaches the designed depth, the anchor system (tendon + sheath) is inserted into the borehole.

✔️ Inclined drilling helps anchor into stable soil/rock beyond the active pressure zone.
✔️ Anchor lengths often range from 8 to 25 meters, depending on depth and load requirements.

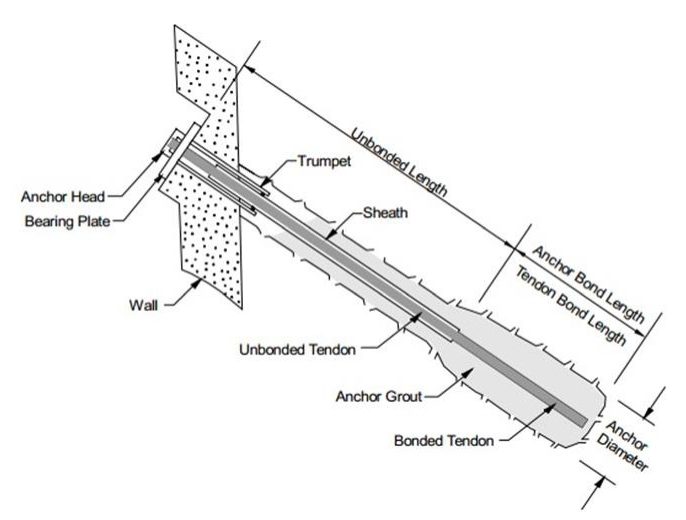

3. Grouting

Image Reference: www.researchgate.net


Grouting in soil anchoring is the process of injecting a grout mixture into a borehole to create a strong bond between the anchor and the surrounding soil or rock. This process is crucial for transferring tensile loads from the anchor to the ground, enhancing the stability of structures like retaining walls, bridge abutments, and excavations.


4. Anchor Head Fixing and Staging

Once the grout sets and gains sufficient strength, anchor heads are fixed onto the wall surface using bearing plates and wedges. These provide the interface for tensioning and structural engagement.

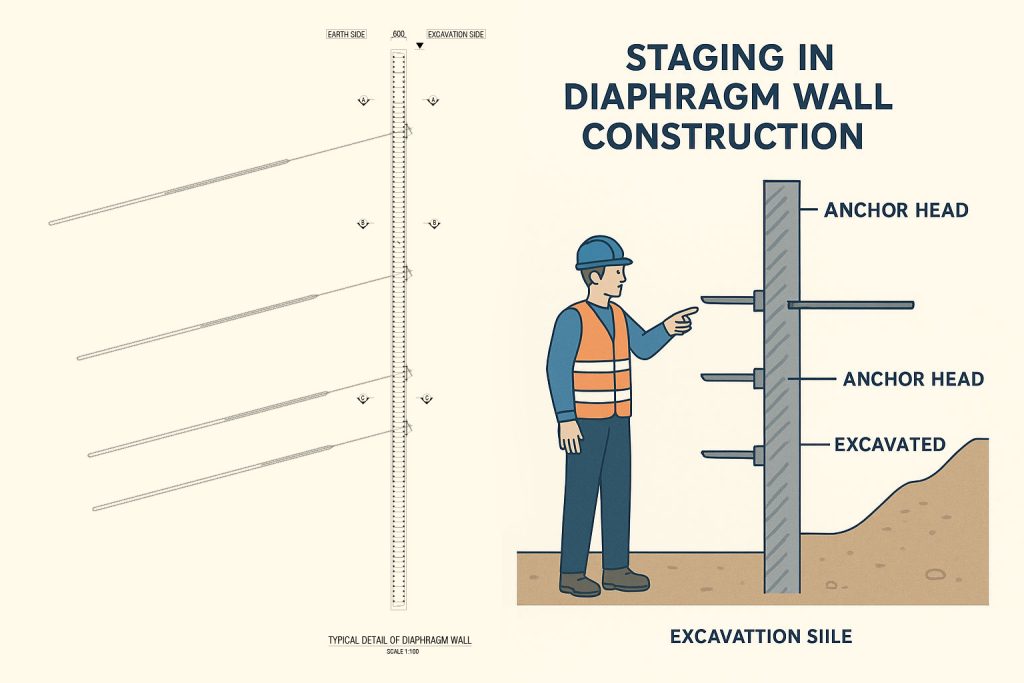

🧱 Staging: Anchor installation is done in stages as excavation progresses. This maintains equilibrium between wall pressure and excavation depth.


5. Tensioning and Lock-Off

Using hydraulic jacks, the anchor is tensioned to the required force and locked in place. This prestressing ensures that the wall remains stable, even before backfilling or structural support is complete.

⚠️ Safety Tip: All anchors are tested before lock-off to confirm load-carrying capacity and elongation behavior.


🌍 Why Soil Anchors Are Critical in Diaphragm Wall Projects

✔️ Enhance structural performance in deep excavations
✔️ Prevent wall deflection in soft or unstable soil zones
✔️ Reduce construction risks in high-density urban projects
✔️ Protect neighboring structures from vibration and settlement

At Wagad Buildcon, we bring decades of field-tested knowledge to ensure every soil anchor is engineered, tested, and executed with precision.


🔧 Projects Where We’ve Applied This Expertise

Soil Anchoring in Dwall has become a vital solution in modern deep excavation projects, especially in congested urban zones where structural stability and safety are paramount. The integration of soil anchoring in diaphragm wall systems ensures that lateral earth pressure is effectively resisted, preventing wall deformation and minimizing risks to adjacent structures. Whether it’s for high-rise foundations, metros, or underground utilities, soil anchoring in Dwall provides unmatched load transfer efficiency and ground control. At Wagad Buildcon, we have mastered the process of soil anchoring in diaphragm wall construction by combining cutting-edge technology, precise grouting techniques, and stage-wise anchor tensioning, making us a trusted partner in India’s infrastructure growth.

From metro corridors and airport building basements to urban high-rise developments, our team has deployed thousands of meters of soil anchors to support diaphragm walls. Trusted by clients like Adani, Tata Projects, Smartworld Developers, DLF, Hero Homes, and more – Wagad Buildcon leads from the ground up.


Conclusion: Deep Foundations Need Deep Expertise

Soil anchoring is more than a technical necessity — it’s a commitment to safety, performance, and longevity. When you partner with Wagad Buildcon Pvt. Ltd., you choose a team that understands the complexity beneath every structure.

Want to learn more or get a quote for diaphragm wall and anchoring services?

📩 Get in touch to dwall@wagadinfra.com or 📞 +91 89800 05155

Diaphragm Walls vs Conventional Retaining Walls: A Comparison

In the ever-evolving world of construction, foundation safety and deep excavation techniques have become more critical than ever. One question frequently asked by developers and engineers is: “Should we go with conventional retaining walls or opt for a diaphragm wall (Dwall) system?”

At Wagad Buildcon Pvt. Ltd., we’ve executed several large-scale projects across India using Dwall technology – and here’s why it’s often the smarter choice in today’s complex construction environments.


What is a Diaphragm Wall (Dwall)?

A Diaphragm wall, also known as Dwall, is a reinforced concrete wall built deep into the ground using slurry trench techniques. It acts as a permanent structural element and is commonly used in:

    • Basement construction
    • Metro stations
    • High-rise buildings
    • Underground infrastructure projects

Conventional Retaining Walls: A Brief Overview

Conventional retaining walls are gravity-based or cantilever structures typically used to retain soil at different levels. They are often built after excavation, which can pose challenges in urban or congested areas.


Image Reference: www.geoengineer.org


Key Differences: Diaphragm Wall vs Conventional Retaining Wall
Feature Diaphragm Wall (Dwall) Conventional Retaining Wall
Construction Timing Constructed before excavation begins Built after excavation
Depth Capability Suitable for very deep excavations (20m–30m+) Limited to shallow depths
Structural Strength High load-bearing capacity Moderate load resistance
Safety for Adjacent Structures Excellent – minimizes ground movement Risk of soil settlement near existing buildings
Space Efficiency Requires minimal space; ideal for tight urban plots Needs more area due to wall thickness and base
Execution Speed Faster, especially for large-scale foundations Slower and labor-intensive
Water Seepage Resistance Highly resistant with proper slurry and sealing Less effective in water-logged areas
Cost Higher initial cost, but saves on rework and delays Lower upfront cost, may require more maintenance

Why Dwall is the Future of Urban Construction

With India’s cities growing vertically and infrastructural demands surging, Dwall construction has become the preferred solution for developers who prioritize:

    • Safety of neighboring structures
    • Speed of construction
    • Long-term durability
    • Compliance with deep excavation norms

At Wagad Buildcon Pvt. Ltd., we have successfully executed over 25,000 sq. m. of diaphragm walls, serving clients like Adani Airports, Tata Projects, Smartworld Developers, DLF, Hero Homes, and more.


Wagad Buildcon: Your Trusted Dwall Construction Partner

From airport building basements to commercial high-rises, our team brings unmatched expertise in:

    • Deep trenching techniques
    • Steel cage reinforcement and cage lowering
    • Concreting under slurry
    • Safety-first execution in live urban environments

Whether you’re planning a new development or expanding below ground, our Dwall solutions ensure your structure stands on solid engineering.


Conclusion: Choose Smart. Build Deep.

While conventional retaining walls still serve a purpose in limited scenarios, diaphragm wall construction (Dwall) offers far superior performance, especially for deep, urban, and high-load projects.

💡 Looking for reliable Dwall contractors in India?
Let Wagad Buildcon help you build deeper, safer, and faster.


Get in touch for more information dwall@wagadinfra.com | +91 89800 05155

Building Deeper for a Safer Tomorrow : The Growing Importance of Diaphragm Wall Construction in India

In today’s fast-paced construction landscape, deep excavation and high-rise development are no longer exceptions – they’re the new normal. And with this shift comes the critical need for safer, faster, and more reliable underground construction techniques. This is where diaphragm wall construction (Dwall) takes center stage – and Wagad Buildcon Pvt. Ltd. is proud to be among India’s leading experts in this specialized field.

What is Diaphragm Wall and Why It Matter

A diaphragm wall, also referred to as Dwall, is a reinforced concrete wall constructed in deep trenches to serve as a permanent structural and groundwater-retaining solution. It is widely used in:

    • High-rise buildings with multi-level basements
    • Metro and underground transportation systems
    • Airports and heavy civil infrastructure
    • Commercial complexes in dense urban environments

Its significance lies in the time-saving, safety, and space efficiency it offers, especially when working in close proximity to existing structures. Dwall construction minimizes the risk of soil collapse, water ingress, and damage to neighboring buildings — making it a preferred method in modern urban development.

Wagad Buildcon’s Contribution to India’s Infra Boom

At Wagad Buildcon Pvt. Ltd., we have established a strong reputation for delivering complex Dwall projects with precision, safety, and speed. Backed by advanced machinery, experienced technical teams, and a strict adherence to quality standards, our diaphragm wall construction services are trusted by India’s top developers and EPC players.

🏗️ Our Esteemed Clientele Includes:
    • Adani Airport Holdings
    • Tata Projects
    • Dasnac Group
    • Smartworld Developers
    • M3M India
    • Hero Homes
    • Times Group
    • DLF
    • Omaxe
    • Avirat Group and many more.

Each project stands as a testament to our commitment to engineering excellence, site safety, and client satisfaction.

Benefits of Diaphragm Wall Construction in Today’s Era

Faster Execution in Tight Timelines
With modular trenching and pre-designed cage reinforcements, Dwall construction accelerates basement development and saves valuable project time.

Enhanced Safety for Surrounding Buildings
In congested zones like city centers, airports, or redeveloped industrial belts, diaphragm walls shield adjacent structures from ground movement and water damage.

Structural Integrity for Deep Foundations
Dwalls provide long-term stability to high-load projects like skyscrapers and metro stations, reducing future maintenance costs.

Minimal Surface Disruption
Unlike traditional retaining methods, diaphragm walls require less surface clearance, allowing construction even in space-constrained plots.

Why Choose Wagad Buildcon for Dwall Construction in India?

With over 25,000+ sq. m. of diaphragm wall execution and depths exceeding 30 meters, Wagad Buildcon has the on-ground experience, technical knowledge, and client trust to deliver superior results across India.

From airport terminals and IT parks to commercial towers and luxury residential basements, our projects reflect the future of urban construction — deep-rooted, safe, and sustainable.

Let’s Build the Future, Safely and Efficiently

At Wagad Buildcon, we don’t just build structures — we build trust, timelines, and long-term value. If you’re a builder, developer, or infrastructure consultant looking for expert diaphragm wall contractors in India, let’s talk.

📩 Get in touch to dwall@wagadinfra.com with our technical team to explore tailored solutions for your next project.

Top 5 Benefits of Diaphragm Wall Construction in Underground Projects

Diaphragm wall construction has become a pivotal technique in the field of underground projects, particularly in urban settings like India, where space is at a premium. As cities grow vertically and the demand for underground infrastructure increases, this method offers unique advantages, making it increasingly popular in major urban centers, including Gurgaon, Noida, and Ahmedabad. This blog explores the top five benefits of diaphragm wall construction in underground projects, emphasizing its significance in Diaphragm wall construction in India

Enhanced Structural Stability

One of the foremost advantages of diaphragm wall construction is its ability to provide exceptional structural stability. These walls act as a rigid barrier, helping to retain soil and prevent water infiltration. This quality is crucial for underground projects, such as basements and tunnels, where maintaining the integrity of surrounding soil is essential. The robust nature of diaphragm walls makes them particularly suitable for areas prone to seismic activity, ensuring that structures remain secure even under duress.

In many Indian cities, where earthquakes can pose significant risks, the stability provided by diaphragm walls becomes a paramount concern. Their ability to withstand lateral pressures from the surrounding soil and water ensures that the structures built behind them are safe and long-lasting. Additionally, the design and construction of diaphragm walls allow for the integration of reinforcement, further enhancing their load-bearing capacity.

This structural integrity is critical not only for safety but also for maintaining the usability of the space above and around the construction site. As urban planners and architects strive to create sustainable, multi-functional spaces, the enhanced stability offered by diaphragm walls supports innovative designs that make the most of limited urban land.

Improved Water Management

Construction site with workers installing diaphragm walls.

Effective water management is a critical concern in any underground construction project. Diaphragm walls excel in this regard, functioning as impermeable barriers that prevent groundwater from entering the excavation site. This not only protects the structural integrity of the project but also minimizes the need for extensive dewatering systems. In cities like Noida and Ahmedabad, where groundwater levels can fluctuate significantly, the water-resistant properties of diaphragm walls make them an ideal choice for ensuring dry work conditions.

By controlling water ingress, diaphragm walls help mitigate the risks of waterlogging and soil erosion during and after construction. This advantage is especially relevant in regions that experience heavy rainfall or flooding, as it helps maintain a safe and dry environment for workers and machinery alike. Additionally, the reduced need for dewatering means that construction timelines can be adhered to more closely, avoiding delays and ensuring projects stay on schedule.

Moreover, with a growing emphasis on environmental conservation, the ability of diaphragm walls to manage groundwater effectively can contribute to sustainable urban development. By preventing groundwater depletion and maintaining natural water levels, diaphragm walls play a vital role in the preservation of local ecosystems, supporting biodiversity in urban landscapes.

Versatile Applications

Diaphragm walls are incredibly versatile, making them suitable for a wide range of applications. Whether it’s constructing deep basements for commercial buildings, facilitating metro projects, or creating underground storage facilities, diaphragm walls can be tailored to meet specific project needs. Their adaptability allows for the accommodation of varying soil types and site conditions, ensuring that they can be effectively utilized across different geographical contexts in India.

The versatility of diaphragm walls is also evident in their use in complex urban environments. They can be designed to accommodate varying depths and thicknesses, allowing for flexibility in architectural and engineering designs. This makes them ideal for projects that require intricate layouts or special considerations, such as noise and vibration control in densely populated areas.

In addition, diaphragm walls can be combined with other construction techniques, further expanding their applicability. For instance, they can be integrated with ground improvement methods to enhance stability in challenging soil conditions or used alongside cut-and-cover tunneling techniques for underground transit systems. This multifaceted approach allows construction professionals to devise innovative solutions that meet the unique challenges of each project.

Reduced Environmental Impact

Construction site with heavy machinery and workers digging a trench.

In an era where sustainability is paramount, diaphragm wall construction offers several environmental benefits. The technique typically involves less soil disturbance compared to traditional methods, leading to reduced excavation waste. Furthermore, by minimizing groundwater disruption, diaphragm walls help preserve local ecosystems. This is particularly important in urban settings where construction activities can have significant impacts on the surrounding environment.

By reducing the amount of soil that needs to be excavated and transported, diaphragm wall construction lessens the carbon footprint associated with construction activities. Additionally, the minimized disruption to groundwater flows helps maintain the ecological balance in urban areas, promoting the health of flora and fauna in surrounding regions.

Furthermore, diaphragm walls are often constructed using locally sourced materials, which can significantly reduce transportation emissions and support local economies. As sustainability becomes a key focus for urban development, the environmental advantages of diaphragm wall construction align closely with broader goals for responsible and eco-friendly building practices.

Cost-Effectiveness

While the initial investment in diaphragm wall construction might seem higher than traditional methods, the long-term savings can be substantial. The durability and strength of diaphragm walls reduce the likelihood of future repairs and maintenance, resulting in lower lifecycle costs. Additionally, their efficiency in managing water reduces the expenses associated with dewatering systems.

For developers and contractors in India, particularly those offering diaphragm wall construction services, this cost-effectiveness can significantly enhance project viability. Over the course of a project’s life cycle, the financial benefits of reduced maintenance, improved safety, and minimized environmental impact often outweigh the upfront costs associated with diaphragm wall installation.

Moreover, the ability to accelerate construction timelines due to effective water management and reduced site disturbances translates into further financial savings. Projects that are completed on time can lead to quicker returns on investment, making diaphragm wall construction a smart choice for developers in competitive markets.

Conclusion

Diaphragm wall construction is revolutionizing underground projects across India, offering numerous benefits that address the challenges of modern construction. From enhanced structural stability and improved water management to versatile applications and reduced environmental impact, the advantages are compelling. As urban areas continue to grow, the adoption of diaphragm walls will likely become increasingly prevalent, solidifying their role as a cornerstone of safe and efficient underground construction.

For more information on diaphragm wall construction and to explore our services, visit Wagad Infra. Whether you’re looking for Diaphragm wall construction in Noida, Ahmedabad, or anywhere in India, we are here to meet your construction needs with expertise and reliability. With our commitment to quality and sustainability, we can help bring your underground construction projects to life, ensuring they are built to last.

Why Diaphragm Walls are Essential for Urban Real Estate Development

Urban real estate development is a complex and multifaceted process that requires innovative solutions to address the unique challenges of dense city environments. As cities continue to expand, the need for effective and efficient construction methods becomes increasingly important. Among these solutions, Diaphragm wall construction in India has emerged as a critical component in foundation construction, providing stability and durability in challenging conditions. In this blog post, we will explore the importance of diaphragm walls in urban real estate development, specifically focusing on their implementation across various Indian cities and the advantages they offer.

Understanding Diaphragm Walls

Diaphragm walls are reinforced concrete structures that are constructed below ground level, acting as retaining walls that support the excavation of soil. These walls are designed to withstand horizontal pressures from soil and water, making them particularly effective in urban settings where space is limited, and the risk of soil movement is high. The construction of diaphragm walls involves specialized equipment and techniques, including the use of trenching machines and hydraulic grab systems, which allows for a highly efficient and effective solution for foundation stability. Given their robust design and construction methods, diaphragm walls can be essential in various types of urban projects, from high-rise buildings to expansive commercial complexes.

Key Benefits of Diaphragm Wall Construction in Urban Settings

A construction site in an urban area, with a focus on diaphragm wall construction.

    1. Space Efficiency

      In crowded urban areas like Gurgaon and Ahmedabad, the availability of land is often limited. Diaphragm wall construction in India allows for deep excavation while maintaining a small footprint. This is particularly beneficial in high-density locations, enabling developers to maximize the use of available land. By utilizing diaphragm walls, construction projects can achieve greater depth for basements and underground facilities without the extensive land disturbance typically associated with traditional retaining walls. This efficient use of space translates into enhanced project feasibility and profitability.p>

    2. Soil Stabilization

      One of the most critical aspects of urban construction is soil stabilization. Diaphragm walls provide excellent soil stabilization, preventing soil erosion and reducing the risk of landslides during construction. This is crucial in urban environments where underground water tables and varying soil types can pose significant risks to construction projects. The ability of diaphragm walls to retain soil effectively means that they can safeguard surrounding structures and prevent soil collapse, ensuring safety and integrity throughout the construction process.

    3. Noise and Vibration Reduction

      Urban construction often faces challenges related to noise and vibrations that can disrupt surrounding areas. Diaphragm wall construction minimizes these impacts due to its quieter and less disruptive installation methods compared to traditional methods, making it a more community-friendly option. This aspect is especially important in densely populated areas, where residents and businesses are sensitive to construction noise. By employing diaphragm walls, contractors can contribute to a more harmonious construction process that respects the surrounding community’s peace and quiet.

    4. Environmental Benefits

      The use of diaphragm walls can have a positive environmental impact. Their construction methods often generate less waste and require fewer materials than other foundation types. Additionally, they can help manage groundwater levels, reducing the risk of flooding in urban areas. By minimizing material usage and optimizing construction practices, diaphragm wall projects can adhere to sustainable construction principles. This eco-friendly approach not only supports local regulations but also enhances the overall reputation of construction firms committed to environmental stewardship.

    5. Versatility and Adaptability

      Diaphragm walls can be adapted for various urban projects, including residential buildings, commercial complexes, and infrastructure development. This versatility allows them to meet the unique demands of different projects in cities like Gurgaon and Ahmedabad. Whether it’s a high-rise office building or an underground parking facility, diaphragm walls can provide tailored solutions that align with specific project requirements. Their adaptability to various soil conditions and structural needs makes them an ideal choice for developers looking to innovate in their construction practices.

The Growing Demand for Diaphragm Wall Construction in India

Construction site with workers and machinery.

As urbanization accelerates in India, the demand for Diaphragm wall construction in India is on the rise. Cities such as Gurgaon, known for their rapid development, are witnessing an increased focus on sustainable construction practices that minimize land use while maximizing structural integrity. The growth of the real estate sector in these urban centers necessitates advanced construction solutions that can effectively address land constraints and environmental challenges. Similarly, Ahmedabad’s growing infrastructure needs highlight the necessity of employing diaphragm walls in new projects, ensuring that development keeps pace with the increasing urban population.

Choosing the Right Diaphragm Wall Construction Services

When selecting a contractor for Diaphragm wall construction in India, it’s essential to consider the following factors:

Why Choose Professional Diaphragm Wall Construction Services?

  • Experience and Expertise: Look for a construction company with a proven track record in diaphragm wall projects. A contractor with extensive experience will be better equipped to navigate the complexities of urban construction.

  • Technology and Equipment: Ensure that the contractor uses the latest technology and equipment for efficient construction. Advanced machinery can significantly enhance the quality and speed of diaphragm wall installation.

  • Sustainability Practices: Choose a company that prioritizes environmentally friendly practices in its construction processes. Contractors that adopt sustainable methods contribute positively to the community and the environment.

Conclusion

Diaphragm wall construction in India is becoming increasingly vital for urban real estate development, especially in rapidly growing cities like Gurgaon and Ahmedabad. Their ability to provide stability, efficiency, and environmental benefits makes them an ideal choice for modern construction projects. As developers seek innovative solutions to navigate the complexities of urban environments, diaphragm walls will undoubtedly play a crucial role in shaping the future of urban infrastructure.

By embracing the advantages of diaphragm wall construction, developers can ensure the longevity and sustainability of their projects, contributing positively to the urban landscape in India. If you’re considering a construction project that requires robust foundation solutions, exploring Diaphragm wall construction in Gurgaon can be your key to success. The strategic implementation of diaphragm walls not only enhances structural integrity but also fosters sustainable urban development, paving the way for a brighter future in India’s urban real estate market.

The Role of Construction Management in D-Wall Construction Projects

Diaphragm wall construction, especially in India, has become a critical part of large-scale infrastructure and urban development projects. As cities expand and the demand for deeper foundations rises, diaphragm walls (also known as D-Walls) are increasingly being used for constructing deep basements, underground parking, tunnels, and other heavy infrastructure. However, to ensure that these walls meet the required quality, safety, and environmental standards, the role of construction management is crucial. In this blog, we’ll explore the significance of construction management in diaphragm wall construction projects and how it contributes to the success of these ventures

Understanding Diaphragm Wall Construction

Diaphragm walls are deep, reinforced concrete walls used to support excavation projects and provide permanent underground structures. This method is particularly popular in India due to the country’s rapid urbanization and the need for efficient underground space utilization. Diaphragm wall company in India to this sector. has seen significant growth, particularly in metropolitan cities like Ahmedabad, where projects require robust foundations for high-rise buildings, transportation infrastructure, and other complex civil engineering tasks.

The Role of Construction Management in Diaphragm Wall Constructionn

Industrial construction project by Wagad Infraprojects Pvt. Ltd.

    1. Ensuring Design Integrity and Quality Control

      The design and execution of diaphragm walls require precision and adherence to strict engineering standards. Construction management ensures that the wall’s design specifications are met, particularly when working with challenging soil conditions or intricate architectural requirements. With expert construction management, dwall construction companies in India can minimize errors, control material quality, and adhere to local regulations, ensuring the longevity and reliability of the structure.

    2. Time and Cost Management

      Diaphragm wall construction services are often required in high-budget, large-scale projects. One of the key responsibilities of construction management is to keep projects on schedule while avoiding cost overruns. This involves meticulous planning, resource allocation, and real-time project monitoring. Construction managers work closely with the engineering teams, suppliers, and contractors to ensure that materials are sourced on time and that construction proceeds without unnecessary delays.

    3. Risk Management and Safety Protocols

      Safety is a paramount concern in any construction project, especially when dealing with deep excavations like those required for diaphragm walls. Construction management ensures that all safety protocols are strictly adhered to, mitigating the risk of accidents and structural failures. With proper risk management strategies, construction management teams in India can minimize the potential hazards that come with building in densely populated urban environments like Ahmedabad, where diaphragm wall construction is on the rise.

    4. Coordination with Stakeholders

      In large-scale projects, many stakeholders, including architects, engineers, contractors, and government authorities, must collaborate effectively. Construction managers act as the central point of coordination, ensuring seamless communication and cooperation among all parties involved. This is particularly important in complex projects where delays or miscommunication can lead to costly revisions or project halts.

    5. Environmental Considerations

      ISustainable construction is becoming increasingly important in India. Construction management in diaphragm wall projects involves integrating environmentally-friendly practices. This includes reducing waste, managing water usage during construction, and ensuring that the excavation and construction processes have minimal impact on surrounding areas. With proper construction management, diaphragm wall companies can help achieve environmentally sustainable outcomes while meeting project goals.

The Growing Need for Diaphragm Wall Construction in India

Diaphragm wall construction in India by Wagad Infraprojects Pvt. Ltd.

India’s rapidly growing infrastructure demands are driving the need for more advanced construction techniques. D-Wall construction companies are stepping up to meet the need for stronger foundations in cities with high seismic activity, dense populations, and expanding urban landscapes. Cities like Ahmedabad, known for their dynamic real estate and commercial projects, are witnessing a surge in demand for diaphragm walls.

To meet these demands, construction management plays an indispensable role in ensuring that projects are completed efficiently, safely, and sustainably. From initial design to final execution, construction managers guide every phase, ensuring the project meets its technical requirements while adhering to budget and time constraints.

Why Choose Professional Diaphragm Wall Construction Services?

Selecting the right D-Wall construction service provider in India is essential to the success of any project. A well-managed construction project ensures that the highest standards of safety, efficiency, and sustainability are maintained. Professional dwall construction companies offer end-to-end services, from initial design consultations to on-site execution, giving clients the confidence that their projects will be completed on time and within budget.

Moreover, construction companies that specialize in diaphragm walls bring valuable expertise and experience, especially in dealing with challenging soil and environmental conditions. These companies are also better equipped to navigate India’s complex regulatory landscape, ensuring all projects comply with national and local construction codes.

Conclusion

Diaphragm wall construction in India is crucial for developing modern infrastructure, and construction management plays a key role in ensuring the success of these projects. By maintaining quality control, adhering to safety protocols, and coordinating the efforts of all stakeholders, construction managers ensure that diaphragm walls are constructed efficiently and to the highest standards. With the rising demand for underground infrastructure in cities like Ahmedabad, the importance of professional construction management in diaphragm wall projects cannot be overstated.

For any D-Wall construction needs in India, it’s essential to work with experienced and skilled professionals who can offer both expertise and reliable project management to ensure a successful outcome.

Diaphragm Wall Construction in the Mining Industry: Applications and Challenges

The mining industry relies on advanced engineering solutions to ensure the safety and efficiency of operations. One such critical innovation is diaphragm wall construction, which plays a key role in underground mining projects by providing structural support and groundwater control. In India, the
demand for this technique is rising as mining companies face increasingly complex geological challenges. This blog explores the applications and challenges of diaphragm wall construction in mining and the contribution of leading Diaphragm wall company in India to this sector.

Applications of Diaphragm Wall Construction in Mining

  1. Underground Support for Mining Shafts

    Before starting construction, conduct a thorough site evaluation and geotechnical investigation to understand soil conditions, groundwater levels, and other factors influencing the design and build of the diaphragm wall.

  2. Groundwater Control

    Mining projects frequently encounter high groundwater levels, which can disrupt operations. Diaphragm walls act as water-resistant barriers, preventing groundwater from infiltrating excavation sites. This is crucial for ensuring safety in mining areas prone to water ingress.

  3. Soil Stabilization in Fragile Geological Areas

    Mining in areas with unstable soil requires advanced stabilization techniques. Diaphragm walls help reinforce these areas, enabling mining companies to work safely even in regions with fragile geological conditions.

  4. Soil Stabilization in Fragile Geological Areas

    Diaphragm walls also contribute to environmental protection by preventing the contamination of groundwater by mining operations. By acting as barriers, they help contain hazardous materials, reducing the risk of environmental pollution.

Challenges in Diaphragm Wall Construction for Mining

Diaphragm wall construction in the mining industry, showing heavy machinery and a mining site.

Wagad Infraprojects Pvt. Ltd. specializes in diaphragm wall construction for mining applications.

  1. Geological Complexity

    The geological unpredictability in mining areas poses one of the biggest challenges for diaphragm wall construction. Variations in soil and rock formations within the same project site require diaphragm wall company in India to employ advanced techniques and experienced engineers to ensure project success.

  2. Specialized Equipment and Skilled Labor

    Constructing diaphragm walls in mining demands specialized machinery, including hydraulic grabs and slurry mixing units. The availability of skilled labor to operate these machines is equally crucial. Companies must invest in training to ensure efficiency in the construction process.

  3. Time Constraints and Project Delays

    Mining projects often face tight timelines, and diaphragm wall construction can be time-consuming. Delays caused by unexpected geological conditions or equipment malfunctions can result in increased costs. Effective project management is necessary to mitigate these risks.

  4. Cost Implications

    The cost of diaphragm wall construction in mining is significant due to the specialized equipment and labor involved. However, the long-term benefits in terms of structural safety and operational efficiency outweigh these initial expenses.

The Role of Diaphragm Wall Companies in India

D-Wall company in India are at the forefront of providing innovative solutions to the mining sector. These companies offer a range of services, from design and planning to full-scale construction, tailored to meet the needs of mining projects across the country. In cities like Ahmedabad, these firms have developed a reputation for delivering high-quality diaphragm walls that meet the rigorous demands of mining operations.

Diaphragm Wall Construction in Ahmedabad: A Hub for Innovation

Diaphragm wall construction in progress at a mining site, featuring heavy machinery and excavation work.

Wagad Infraprojects Pvt. Ltd. specializes in large-scale diaphragm wall construction projects for mining industries.

D-Wall company in India are at the forefront of providing innovative solutions to the mining sector. These companies offer a range of services, from design and planning to full-scale construction, tailored to meet the needs of mining projects across the country. In cities like Ahmedabad, these firms have developed a reputation for delivering high-quality diaphragm walls that meet the rigorous demands of mining operations.

Conclusion

D-Wall construction is essential to modern mining operations, offering solutions for underground support, groundwater control, and soil stabilization. Despite the challenges posed by geological complexities and cost concerns, diaphragm wall companies in India are rising to the occasion, delivering innovative and cost-effective services that are vital to the success of mining infrastructure. For mining companies looking to ensure the long-term stability of their projects, partnering with these specialized firms is a smart and necessary investment.

Minimizing Environmental Impact with Diaphragm Wall Construction in India

Diaphragm wall construction plays a vital role in creating the deep foundations needed for structures like basements, tunnels, and retaining walls. However, this construction method does come with its share of environmental challenges. Leading diaphragm wall construction companies are increasingly adopting sustainable practices to mitigate these impacts.

Environmental Challenges in Diaphragm Wall Construction

Diaphragm wall construction involves excavating large sections of the earth, which can lead to issues such as soil erosion, noise pollution, and disruptions to local wildlife. Additionally, the extensive use of concrete, a primary material in diaphragm wall buildings, contributes to significant carbon emissions. As the industry grows, the pressure mounts on each Diaphragm wall construction company to find ways to reduce their environmental footprint.

Green Practices Adopted by Diaphragm Wall Construction Companies

Key aspects of diaphragm wall construction

To combat these environmental challenges, many companies in the industry are turning to greener solutions. For example, some diaphragm wall construction companies are now using low-carbon concrete mixes and emphasizing the reuse of materials to minimize waste. Furthermore, advanced machinery designed to reduce noise and vibration is becoming a standard in the construction of diaphragm walls.

In a rapidly developing country like India, where Diaphragm Wall Construction in India is on the rise, there’s a growing emphasis on sustainability. Numerous diaphragm wall construction companies in India are pioneering these eco-friendly practices, setting a new standard for the industry.

The Future of Sustainability in Diaphragm Wall Construction

Key aspects of diaphragm wall construction

Looking to the future, the diaphragm wall construction industry is poised to make even greater strides toward sustainability. Innovations in construction techniques and materials, along with tighter environmental regulations, are expected to drive these changes. Companies that embrace these green practices now will not only protect the environment but also solidify their position as leaders in more sustainable Diaphragm Wall Construction in India and beyond.

Conclusion

The environmental impact of building diaphragm walls is a critical concern, but the industry is moving in the right direction by adopting greener practices. By using sustainable materials and advanced technologies, diaphragm wall construction companies are reducing their ecological impact while meeting the demands of Modern construction. This shift towards sustainability will benefit the environment and elevate the companies that lead the charge in Diaphragm Wall Construction in India and globally.

Diaphragm Wall Construction in India: Foundation for Growth

Mastering the art of diaphragm wall construction is an essential skill in civil engineering, especially when tackling complex projects. This technique, celebrated for its stability and versatility, is frequently employed in excavation tasks for deep foundations, underground structures, and retaining walls. In this article, we’ll delve into the various methods, benefits, and best practices associated with diaphragm wall construction in India.

Techniques and Advantages of Diaphragm Wall Construction

Diaphragm wall construction involves digging a trench and placing a series of interlocking concrete panels. This approach is becoming increasingly popular in India due to its effectiveness in various building projects. These panels act as both the retaining structure and the formwork for the wall. The method offers numerous benefits, including a high load-bearing capacity, a smaller excavation footprint, and the ability to withstand substantial water pressure.

To excel in Diaphragm wall construction in India, engineers need a deep understanding of design principles, construction techniques, and quality control measures. This guide will provide a thorough overview, covering essential aspects like panel installation, waterproofing methods, and concrete placement.

Whether you’re a seasoned engineer or just starting out in the field, this article will equip you with the insights needed to thrive in diaphragm wall engineering. Let’s explore the techniques, benefits, and best practices that can pave the way to success in this specialized area.

The Growing Importance of Diaphragm Walls

Key aspects of diaphragm wall construction

In the realm of construction, diaphragm walls have become crucial, especially for projects involving deep excavations, underground structures, and retaining walls. These specialized concrete walls are highly valued for their ability to provide robust support and stability in challenging soil conditions.

One key reason for the rising adoption of Diaphragm wall technology in India is their effectiveness in areas with high water tables, poor soil quality, or unstable geological formations. Diaphragm walls are designed to retain the surrounding earth and prevent soil movement or collapse, making them indispensable for deep foundations, basement levels, and other underground structures where traditional methods fall short.

Engineers design diaphragm walls to endure significant lateral loads, making them ideal for projects that require high load-bearing capacities, such as high-rise buildings, bridges, and transportation infrastructure. These walls provide the structural strength and load-bearing capabilities necessary to ensure the safety and stability of large-scale projects.

Best Practices for Diaphragm Wall Construction

For successful Diaphragm wall construction, adhering to best practices is vital. These practices, refined through extensive industry experience, include:

  • Comprehensive Site Assessment: Before starting construction, conduct a thorough site evaluation and geotechnical investigation to understand soil conditions, groundwater levels, and other factors influencing the design and build of the diaphragm wall.

  • Detailed Planning and Design: Designing a Diaphragm wall is complex and requires experienced engineers to carefully plan dimensions, reinforcement, and concrete mix to meet safety and performance standards.

  • Rigorous Quality Control: Implement strict quality control measures throughout the construction process, including regular inspections, material testing, and adherence to construction protocols.

  • Effective Waterproofing: Ensure long-term durability by using high-quality materials and proven techniques for waterproofing and sealing.

  • Ongoing Monitoring and Maintenance: After completion, maintain a monitoring plan to ensure the wall’s performance and safety, including regular inspections and necessary repairs.

  • Collaborative Communication: Effective coordination among civil engineers, construction teams, and project managers is crucial for a successful build.

By following these best practices, professionals can ensure that diaphragm wall construction India is executed efficiently, safely, and to high standards.

Addressing Challenges in Diaphragm Wall Construction

Key aspects of diaphragm wall construction

While diaphragm walls offer numerous benefits, they also present challenges that must be managed effectively. Common challenges include:

  • Soil and Groundwater Conditions: Designing to withstand specific site conditions like high water tables or unstable soil can be challenging. Solutions may involve specialized excavation techniques and dewatering systems.

  • Access and Space Constraints: In urban areas with limited space, using compact equipment and optimizing construction plans can help overcome access issues.

  • Structural Integrity and Durability: Ensuring the wall’s long-term strength requires high-quality materials and rigorous quality control measures.

  • Environmental Impact: Address environmental concerns such as noise and vibration by employing noise-reducing equipment and sustainable design practices.

  • Regulatory Compliance: Navigate complex regulations by engaging early with regulatory authorities and developing comprehensive compliance plans.

By anticipating these challenges and implementing effective solutions, construction professionals can successfully manage diaphragm wall projects and meet the expectations of clients and stakeholders.

Conclusion

Mastering diaphragm wall construction techniques in India is essential for successful civil engineering projects. Understanding the construction process and recognizing its benefits is crucial. By following best practices, engineers and contractors can effectively navigate challenges and achieve excellent results. As the construction industry evolves, staying updated on the latest advancements and maintaining expertise will be key to future success.

The Role of Diaphragm Walls in Modern Construction

Diaphragm walls play a critical role in today’s construction projects. These specialized structures are essential for ensuring stability during deep excavations and managing water infiltration. Whether it’s for high-rise buildings, underground stations, or large basements, diaphragm walls provide the necessary strength to handle the complexities of urban environments.

The Importance of Diaphragm Wall Construction in India

Diaphragm Wall Construction in India is crucial for maintaining project safety and efficiency. These walls are engineered to prevent soil collapse and control groundwater, especially in areas with challenging ground conditions. By offering a robust barrier, diaphragm walls secure excavation sites and support surrounding structures, which is vital in densely populated urban areas.

Key Aspects of Diaphragm Wall Construction

Key aspects of diaphragm wall construction

Serving as both retaining structures and foundational elements, diaphragm walls offer dual benefits in various construction scenarios. In India’s crowded cities, where land is limited, Diaphragm wall construction is indispensable for creating safe and stable underground spaces. These walls support deep foundations and effectively manage lateral earth pressures and water flow.

The Construction Process of Diaphragm Walls

Constructing diaphragm walls involves several precise steps. It begins with digging a trench, which is then filled with bentonite slurry to prevent collapse. Steel reinforcement cages are placed in the trench, followed by the pouring of concrete to form the wall. This process ensures a continuous, strong barrier capable of withstanding significant pressures. Success relies on specialized equipment and skilled professionals, both of which are crucial for effective diaphragm wall construction companies in India.

Applications of Diaphragm Walls in Indian Infrastructure

The versatility of diaphragm walls is evident in their widespread use across various Indian infrastructure projects. These walls are commonly employed in urban development projects like high-rise buildings, subway stations, and tunnels. They also play a crucial role in industrial projects, such as dams and reservoirs, where they provide essential support and prevent water leakage. Their ability to address both structural and environmental challenges makes them integral to large-scale construction efforts.

Benefits of Using Diaphragm Walls

Key aspects of diaphragm wall construction

Diaphragm walls offer numerous advantages. They provide a reliable solution for structural support and water-tightness, addressing common urban construction challenges. In India, where space is limited and ground conditions can be difficult, these walls ensure durability and efficiency. Their relatively fast construction time also helps accelerate project timelines while maintaining high safety standards.

Challenges and Considerations in Diaphragm Wall Construction

While diaphragm walls offer many benefits, their construction presents challenges. The process requires careful planning and precise execution, especially in crowded urban areas where existing structures must be protected. The availability of skilled labor and specialized equipment can also be a constraint. Although initial costs might be higher, the long-term benefits often justify the investment.

Conclusion

Diaphragm Wall Construction in India is a vital component of modern building practices, offering essential support for deep excavations and complex foundations. As urban development continues to progress, the importance of these walls in ensuring safe and successful construction projects becomes increasingly clear. For more detailed information on diaphragm walls and their applications in civil engineering, you can explore this comprehensive guide.
